Stage Options

Here you can setup the stages in your game. Coming soon: Interactables


Loading Method (PRO/Source)

Stage Prefab/Stage Music

  • Legacy: Loads the prefab along with the game.
  • Resources Folder: Loads the prefab files from the Resources folder. If this option is selected you need to write the path of the file into the fields that will appear under the stage options below.
    Example: Type in Stages\Stage.prefab if the file is located under .Resources\Stages\Stage.prefab. The Resources Folder can be placed anywhere in your project (there is one located under .UFE\)

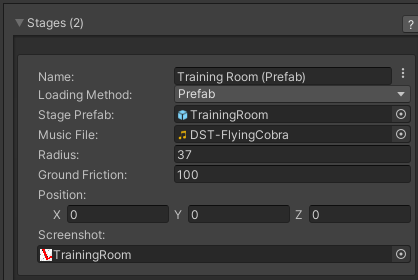

Stage Info

Stage Prefab (Legacy): A prefab containing your stage model.

Stage/Music Resource Path: Write the path of the file beginning from the Resources folder.

Stage Name: The name of this stage.

Music: A song that will be played during the game when this stage is selected.

Left Boundary: How far to the left the characters can walk to.

Right Boundary: How far to the right the characters can walk to.

Ground Friction: How “slippery” the ground is. The smaller the value, the more slippery it is.

Screenshot: A screenshot of this stage.

Note: Your stage prefab must have a plane mesh under the layer “Ground”. Check the Training Room prefab example.


Video Tutorial


Code access:

UFE.config.selectedStage

UFE.config.stages

Code example:

Camera.main.audio.clip = UFE.config.selectedStage.music;

< Back to Global Editor
